BBS Inferno 65CXN 6.5" Coaxial Speakers — Pair
BBS Inferno 65CXN 6.5" Coaxial Speakers — Pair
Before you order
- Designed for
- BBS Inferno 65CXN • 6.5-inch coaxial
- Measurements
- 146 mm mounting diameter • 70 mm mounting depth
- What you get
- One matched pair: two speakers.
Check enclosure clearance, mounting pattern and amplifier setup before installation.
Check cutout, outer frame, mounting depth and screw pattern before ordering.
Check fitment with BBSCouldn't load pickup availability
Shipping & order support
Shipping methods and rates are calculated at checkout. RGV pickup is available when shown for your order.
Orders usually ship through UPS within 1–2 days after ordering. Any longer production time shown on the product page applies.
Shipping & local pickupReturn requests are reviewed case by case. Contact BBS before sending an item back.

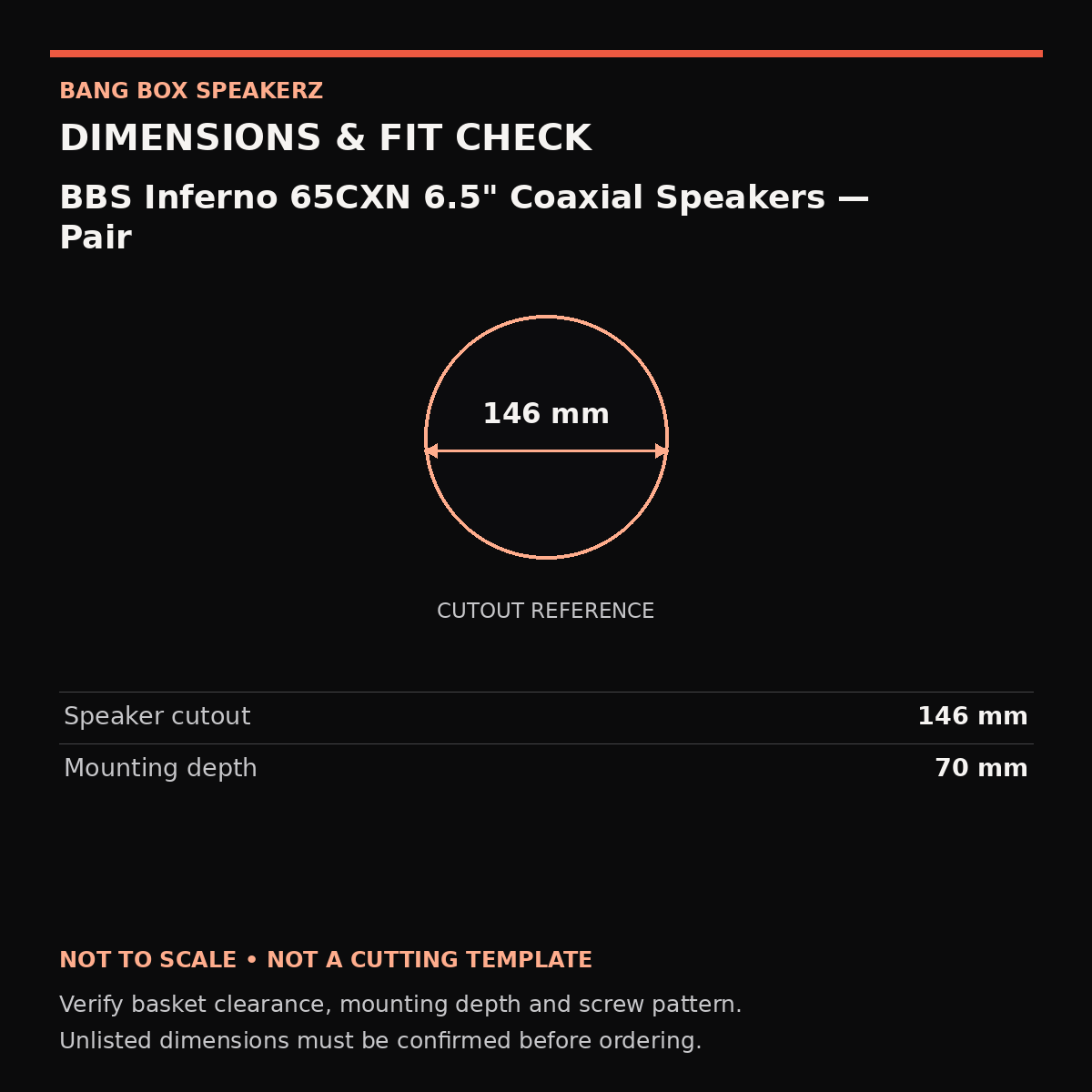

Return helpDimensions & fit check
- Speaker cutout
- 146 mm
- Mounting depth
- 70 mm
Measurement reference only. Not to scale and not a cutting template.
Verify the speaker basket, outside frame, mounting depth and screw pattern. Unlisted dimensions must be confirmed before ordering.
Check fitment with BBSSold as a matched pair (2 speakers).
IN STOCK • SECURE CHECKOUT • BUILDER SUPPORT
Need help with fitment or tuning before you order? Talk to BBS and we’ll help you plan the build.

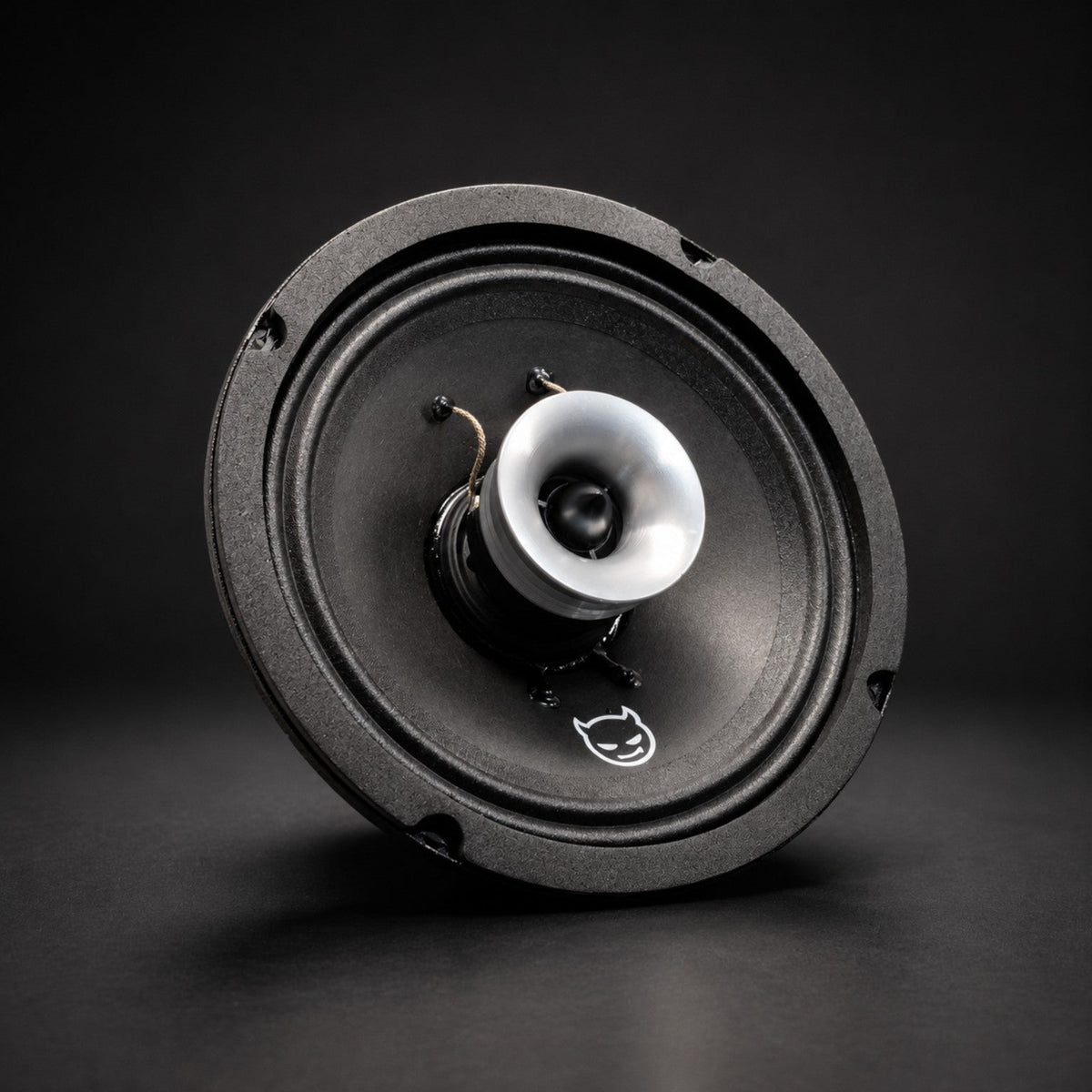

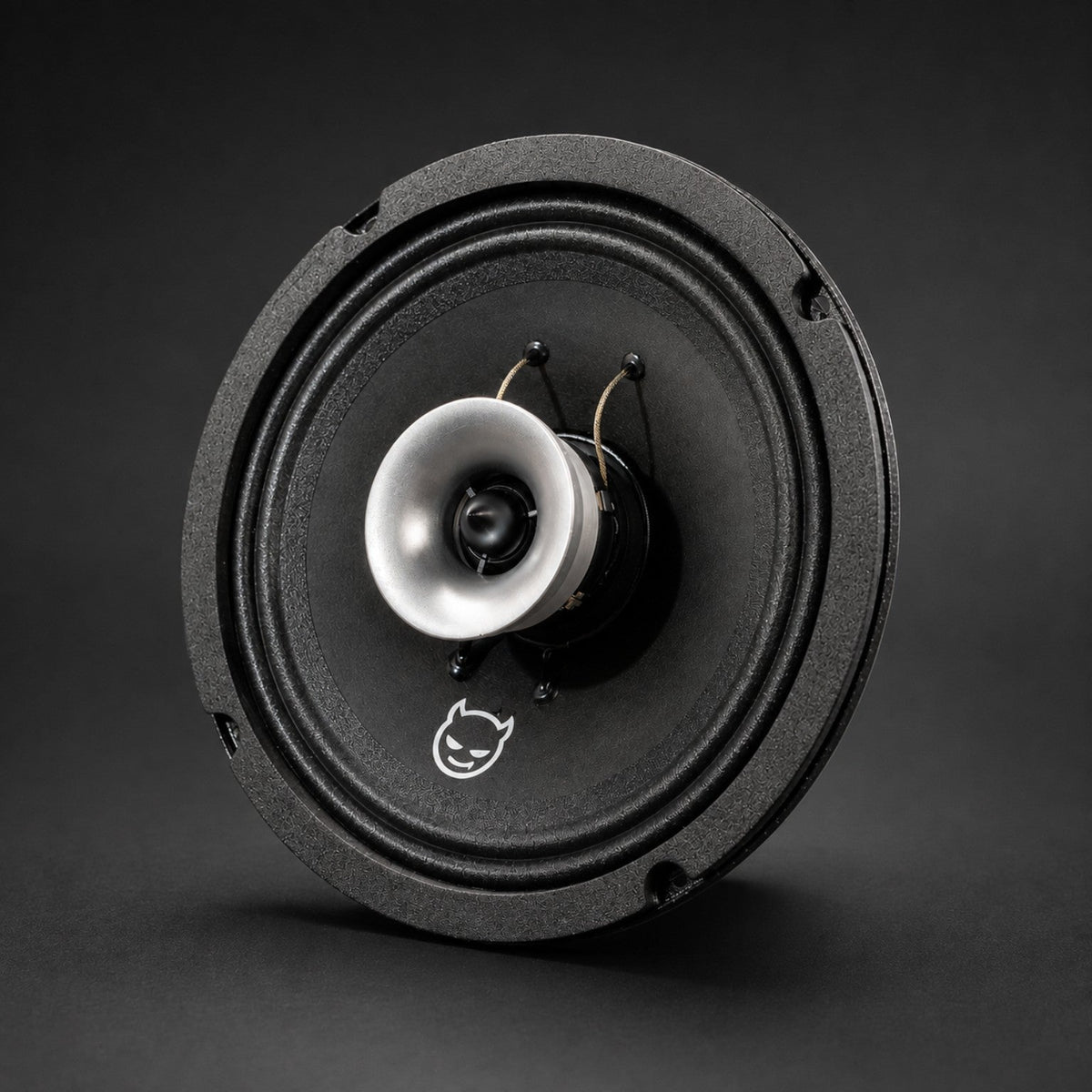

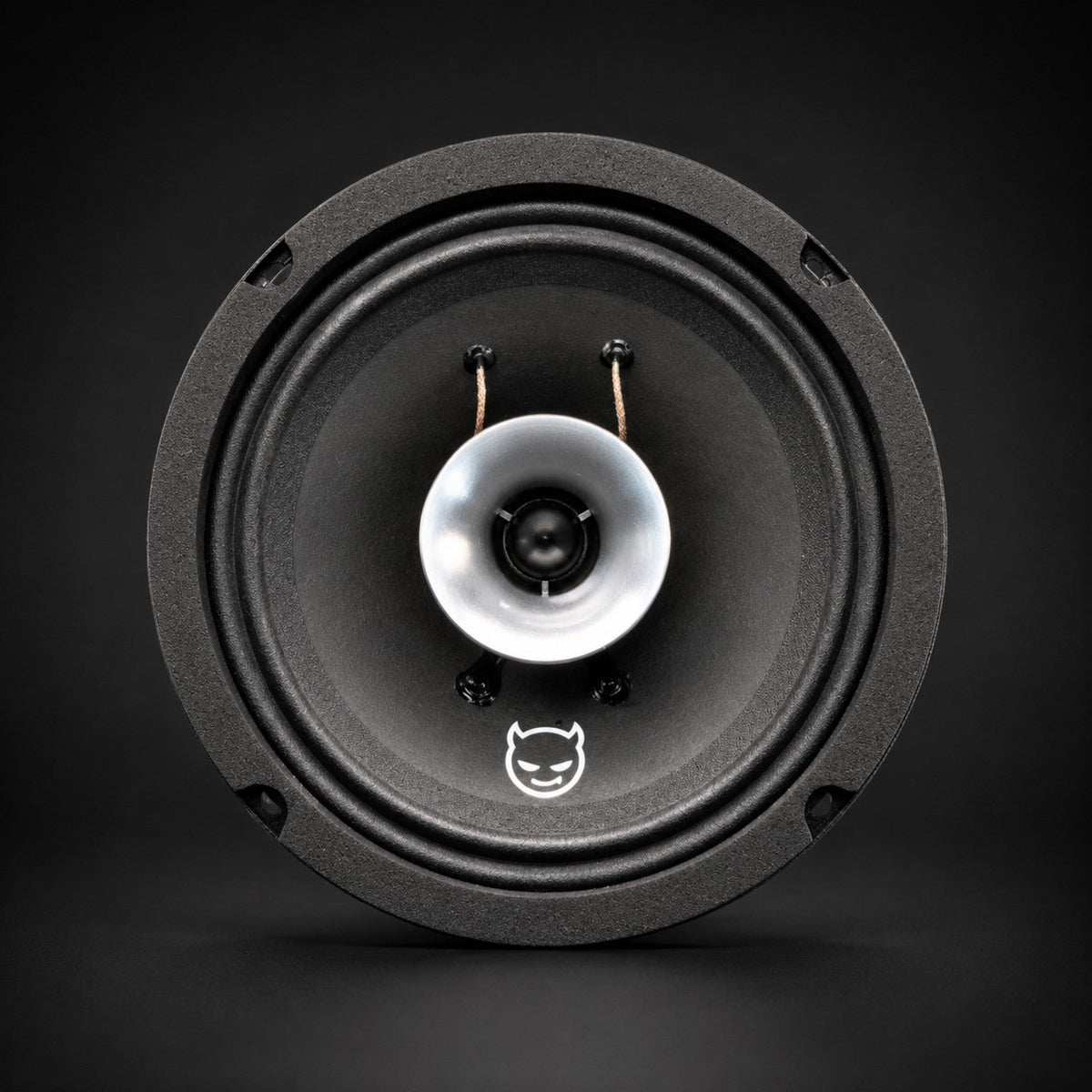

The BBS Inferno 65CXN is a high-output 6.5-inch pro-audio coaxial built for aggressive midrange, crisp highs, and serious efficiency. It is designed for portable Bang Box systems, custom enclosures, demo vehicles, and DSP-controlled builds that demand clarity at high volume.
Built for serious output
- Powerful, projecting midrange with clear high-frequency detail

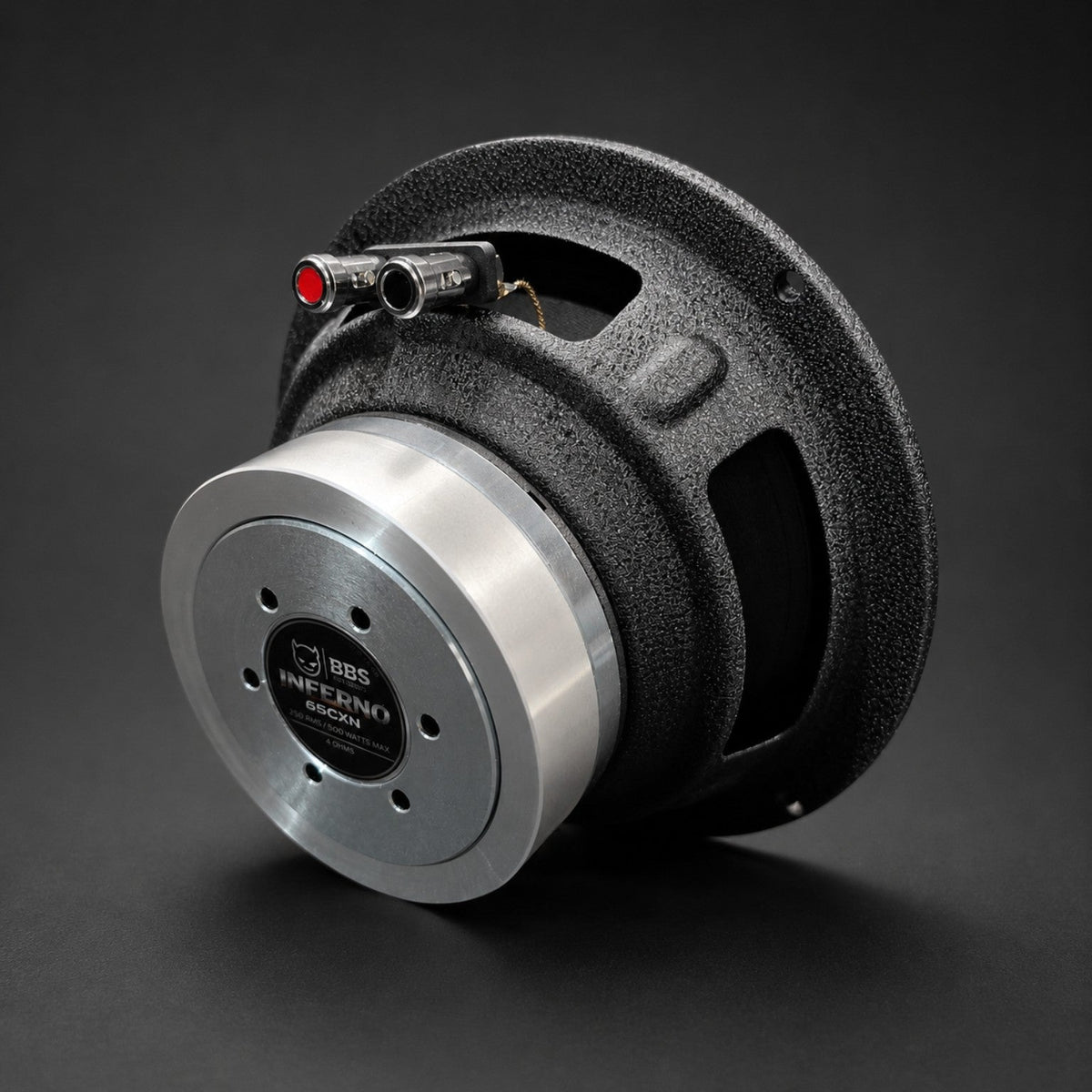

- Dual neodymium motor architecture for high efficiency and reduced weight
- Brushed aluminum compression tweeter and heat sink
- Secure barrel-terminal connections for a clean installation
- Matched-pair performance for balanced output
Bi-amp ready
Separate terminals for the woofer and compression tweeter allow each section to be powered independently. Run the Inferno as a traditional full-range coaxial or use separate amplifier channels and DSP control for more precise crossover, level, and frequency tuning.

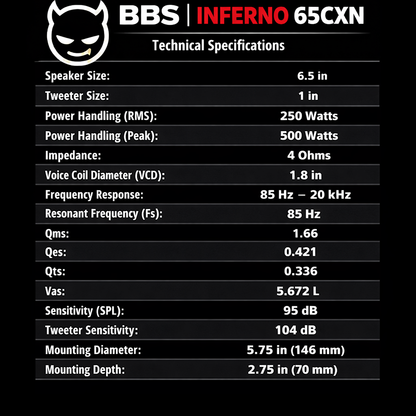

Technical specifications
- Speaker size: 6.5 inches
- Compression tweeter: 1 inch
- Power handling: 250W RMS / 500W peak
- Nominal impedance: 4 ohms
- Voice coil: 1.8 inches
- Frequency response: 85 Hz–20 kHz
- Resonant frequency (Fs): 85 Hz
- Qms / Qes / Qts: 1.66 / 0.421 / 0.336
- Vas: 5.672 L
- Midrange sensitivity: 95 dB
- Tweeter sensitivity: 104 dB
- Mounting diameter: 5.75 inches (146 mm)
- Mounting depth: 2.75 inches (70 mm)
Ideal for

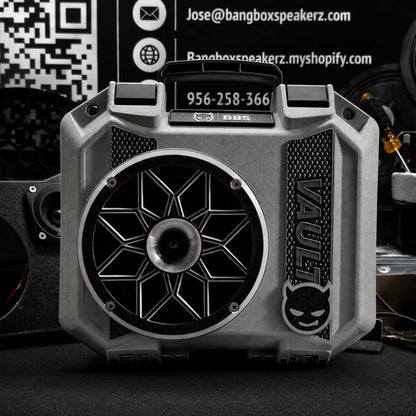

- Portable Bang Box systems
- Pro-audio and DSP-controlled builds
- Custom enclosures and demo vehicles
- High-output installations where clarity matters
What is included

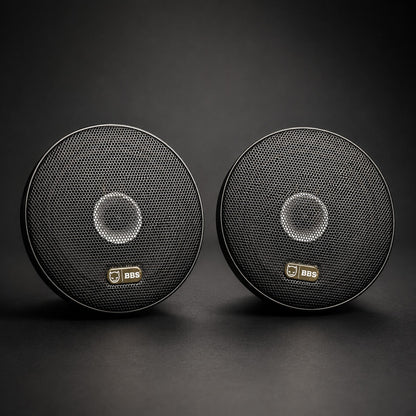

One matched pair of BBS Inferno 65CXN coaxial speakers.
Installation and tuning
Proper amplifier gain structure, crossover settings, and DSP tuning are critical. A clipped or distorted signal, overpowering, or improper installation can permanently damage the speakers.
Inside the BBS workshop.
A closer look at enclosure preparation, sound-deadening material and sealing tape.
Workshop example. Components and construction vary by build; see your product listing for what is included.
In this workshop clip, Jose shows enclosure preparation materials, including sound-deadening sheets and sealing tape.
