BBS INFERNO 65CXN PAIR

🔥 BBS INFERNO 65CXN — SOLD AS A PAIR 🔥



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



ENGINEERED TO DOMINATE.



The BBS INFERNO 65CXN was designed for builders who refuse to compromise. Combining aggressive midrange output, razor-sharp high frequencies, and exceptional efficiency, this is a true pro-audio coaxial built to perform under demanding conditions.



Whether you're building a portable Bang Box, custom enclosure, demo vehicle, or competition-inspired setup, the INFERNO 65CXN delivers the output, clarity, and reliability serious builders expect.



💥 Sold as a PAIR — because real output starts with a matched set.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



⚙️ BI-AMP READY FOR PRO AUDIO SYSTEMS



Unlike conventional coaxial speakers, the INFERNO 65CXN is fully bi-amp capable.



Separate terminals for the woofer and compression tweeter allow each section to be powered independently, making it ideal for advanced DSP tuning and professional audio applications.



Benefits of Bi-Amp Operation:



✔️ Independent amplifier channels for woofer and tweeter



✔️ Precision DSP tuning for each frequency range



✔️ Greater system control and flexibility



✔️ Cleaner crossover management



✔️ Increased headroom and overall efficiency



Whether you choose a traditional full-range configuration or a fully active bi-amped system, the INFERNO 65CXN adapts to your build.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



🔊 DESIGNED FOR MAXIMUM OUTPUT



Every component was engineered to maximize efficiency while maintaining exceptional sound quality.



✔️ Powerful, aggressive midrange



✔️ Crisp, projecting high frequencies



✔️ Outstanding clarity at extreme listening levels



✔️ High efficiency requiring less amplifier power for greater output



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

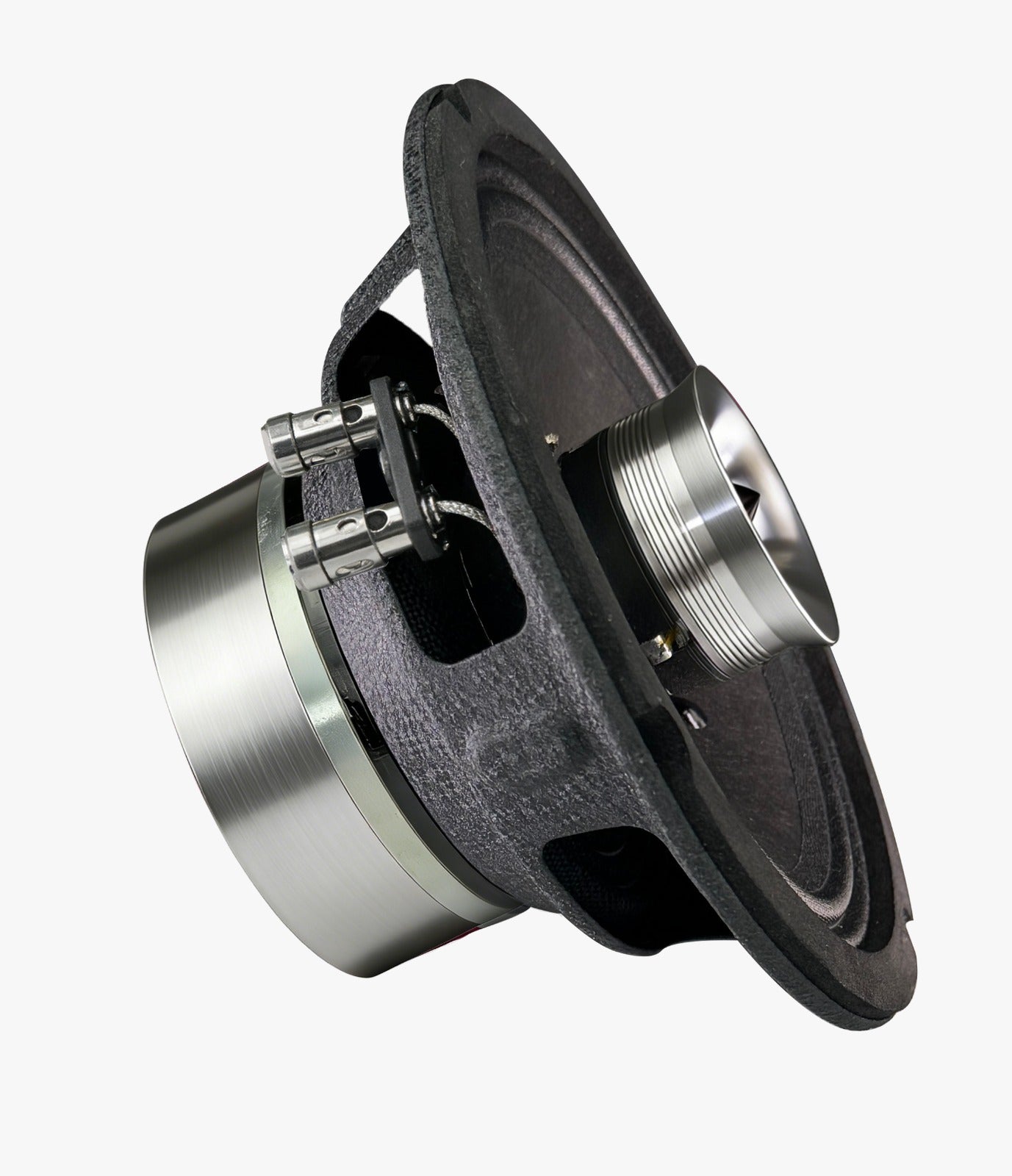

🧲 DUAL NEODYMIUM MOTOR TECHNOLOGY



The INFERNO 65CXN utilizes an advanced dual neodymium motor architecture that delivers exceptional performance while reducing overall weight.



Primary Neodymium Midrange Motor



• High magnetic strength



• Fast transient response



• Increased sensitivity



Dedicated Neodymium Compression Tweeter Motor



• Independent high-frequency motor



• Superior projection



• Enhanced detail and clarity



Advantages



✔️ Higher efficiency



✔️ Faster transient response



✔️ Reduced moving mass



✔️ Improved thermal performance



✔️ Lightweight construction without sacrificing output



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



🛠 PREMIUM BBS COMPONENTS



Every detail was selected with both performance and durability in mind.



🪙 Brushed Aluminum Compression Tweeter



• Premium appearance



• Excellent high-frequency projection



🧊 Brushed Aluminum Heat Sink



• Enhanced cooling



• Increased long-term reliability



🔌 Barrel Terminal Connections



• Secure, professional-grade connections



• Quick and reliable installation



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

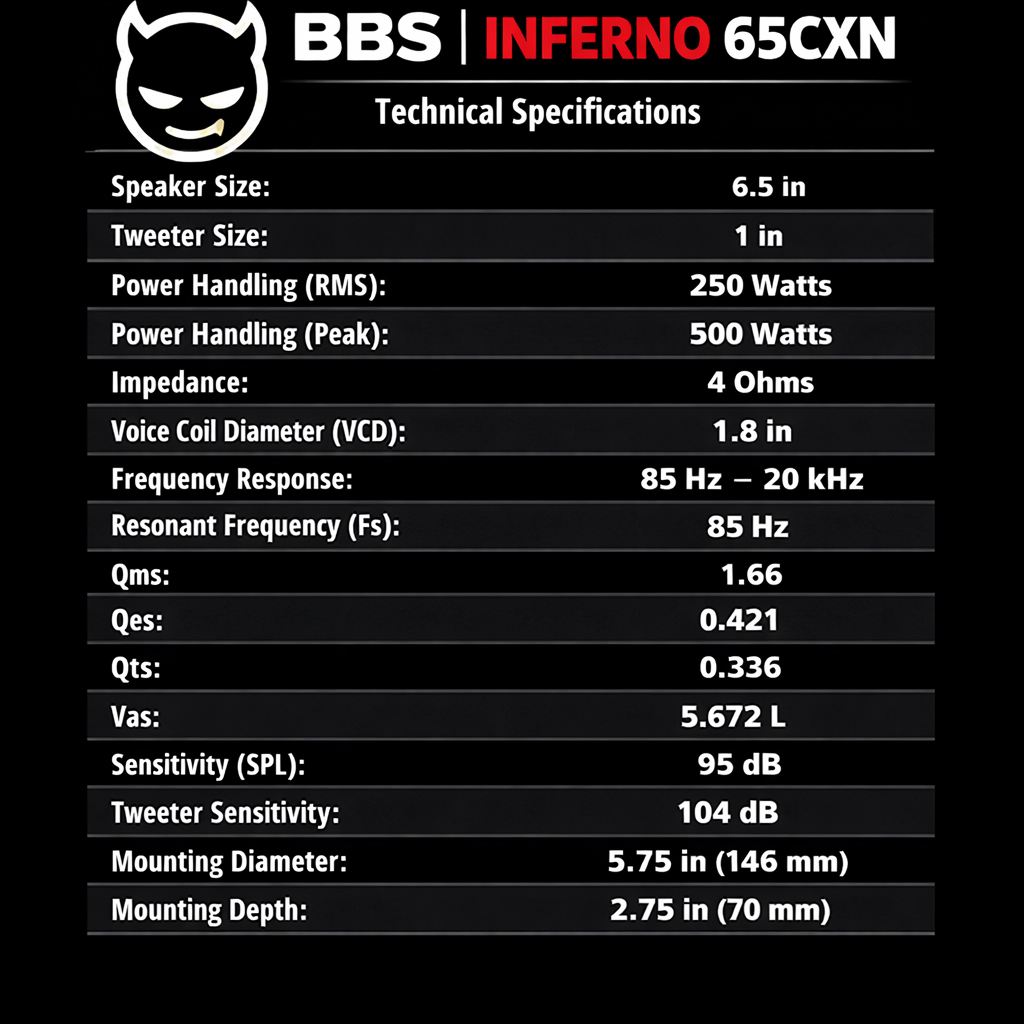

📊 TECHNICAL SPECIFICATIONS



🔊 Speaker Size: 6.5"



🔊 Compression Tweeter: 1"



⚡ RMS Power: 250 Watts



💥 Peak Power: 500 Watts



🔌 Nominal Impedance: 4 Ohms



🧲 Voice Coil: 1.8"



📈 Frequency Response: 85 Hz – 20 kHz



📉 Resonant Frequency (Fs): 85 Hz



📊 Qms: 1.66



📊 Qes: 0.421



📊 Qts: 0.336



📊 Vas: 5.672 L



🔊 Midrange Sensitivity: 95 dB



🔊 Tweeter Sensitivity: 104 dB



📏 Mounting Diameter: 5.75" (146 mm)



📏 Mounting Depth: 2.75" (70 mm)



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



🏆 BUILT FOR SERIOUS BUILDERS



Designed for:

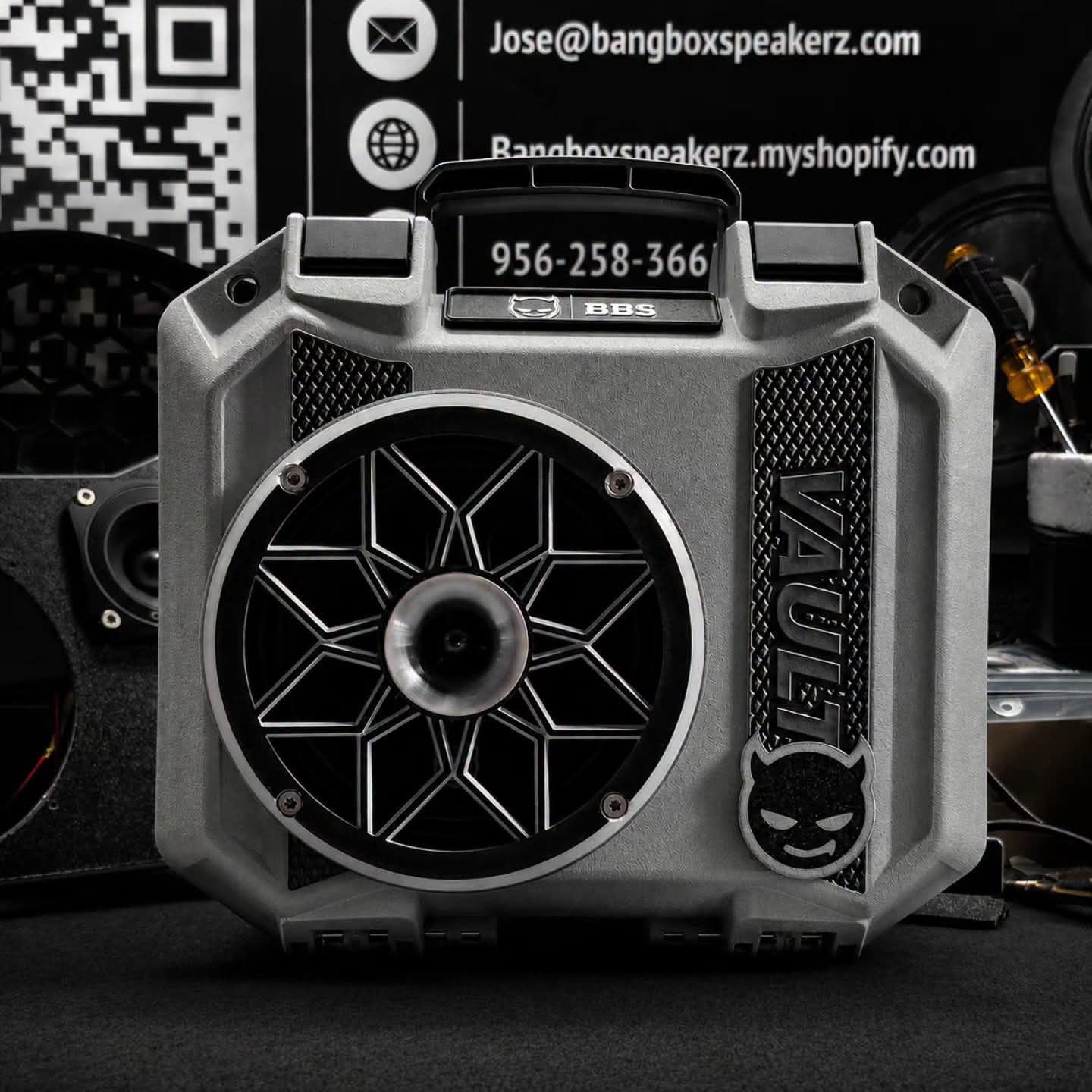

🔥 Portable Bang Box systems



🔥 Pro audio builds



🔥 Custom enclosures



🔥 DSP-controlled systems



🔥 High-output demonstrations



🔥 Builders demanding professional-level performance



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



🚨 LIMITED FIRST PRODUCTION RUN



The first production batch is limited.



Once inventory arrives, orders will be fulfilled on a first-come, first-served basis.



Secure your pair before they're gone.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



⚠️ IMPORTANT NOTICE



Proper amplifier gain structure and DSP tuning are critical.



Operating the speaker with a clipped or distorted signal can cause permanent damage.



Bang Box Speakerz is not responsible for damage resulting from improper installation, tuning, overpowering, or amplifier clipping.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━



💥 HIGH OUTPUT.



🎯 PRECISION ENGINEERED.



🔥 BUILT DIFFERENT.
